AASHTO M180 H-Post Highway Guardrail System for the Middle East

The selection and design of road safety protection facilities are directly related to the operational safety level and accident prevention capability of highways. Among numerous guardrail structures, the W Beam, with its classic structural form and excellent energy absorption performance, has become a representative protective facility for medium and low-risk road sections. Meanwhile, guardrail systems centered on H Posts demonstrate remarkable advantages in a wider range of road scenarios owing to their superior mechanical properties and structural stability.

The integrated assembly consisting of W-beam guardrail, H-posts and H-spacers complies with AASHTO M180 standards. Given that vehicle types and specifications in the Middle East are highly consistent with American standards, this combined guardrail system is widely adopted across the Middle East region.

The W Beam is one of the most commonly used semi-rigid guardrail structures. Its main body is assembled from spliced corrugated steel guardrail panels, forming a continuous anti-collision barrier supported by posts. The core working mechanism of this guardrail is as follows: during vehicle collisions, it absorbs and dissipates impact energy through the coordinated geometric deformation of corrugated steel plates and foundation bearing of posts, thereby guiding out-of-control vehicles back to their normal driving direction and mitigating collision damages.

On the basis of conventional W Beam guardrails, a complete combined guardrail system is formed by taking H Post as the main load-bearing component and connecting guardrail panels with posts reliably via H Spacers. This system achieves remarkable improvements in safety performance, structural stability and construction convenience.

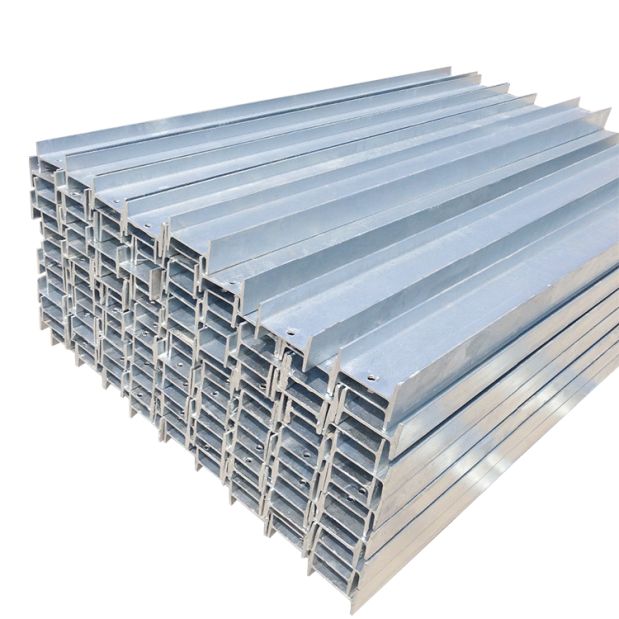

The H Post is named for its H-shaped cross-section, which consists of two flanges and a web with high bending stiffness and load-bearing capacity. Compared with traditional cylindrical steel posts, the cross-section of H Post is more compatible with guardrail spacers. Its regularly arranged bolt holes contribute to higher construction precision and assembly efficiency. Made of high-strength structural steel and treated with hot-dip galvanizing for anti-corrosion, H Posts can serve reliably under diverse natural environments for long-term operation. In addition, H Posts with various cross-sectional specifications are available according to different anti-collision grade requirements, satisfying diversified protection demands from ordinary highways to high-grade highways.

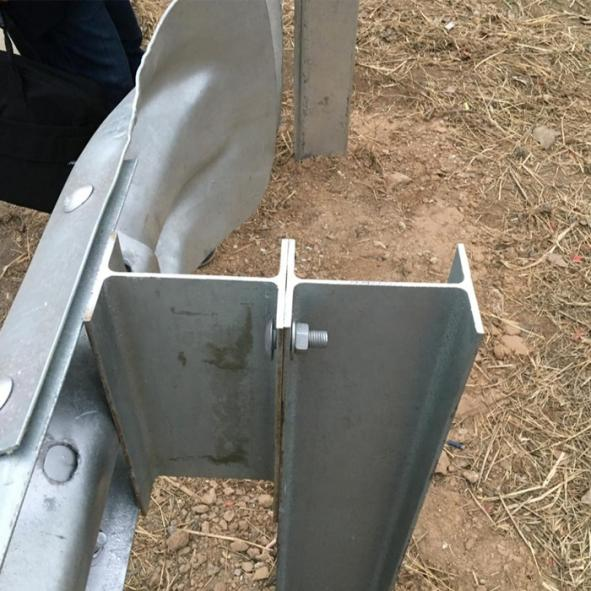

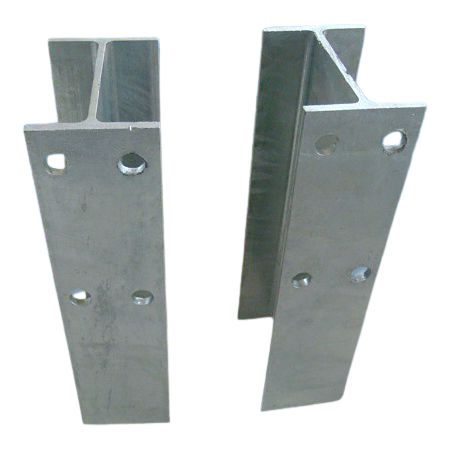

The H Spacer is a key connecting component between W Beam and H Post. It is usually mounted on the impact-facing side of H Post and fastened to W Beam with bolts. The H Spacer not only realizes structural transition and position offset, but also provides moderate buffering capacity. When collisions occur, the H Spacer undergoes limited deformation to absorb partial impact energy, regulate collision direction and reduce the risk of guardrail panel penetration. Compared with traditional blocking blocks, H Spacers feature higher rigidity and more accurate positioning, which greatly enhance joint connection reliability and overall structural stability of the H Post guardrail system.

The combined system of W Beam, H Post and H Spacer integrates respective advantages of each component: the W Beam provides flexible energy absorption and vehicle guidance, the H Post offers rigid support and structural load capacity, and the H Spacer realizes reliable connection and buffering coordination between the two. With synergistic effects of the three components, a semi-rigid guardrail system with excellent mechanical properties, convenient construction and simple maintenance is constructed. It performs well in protecting medium-low speed highways, urban expressways, bridge approaches, ramps and other road sections. Furthermore, thanks to the design flexibility of H Post, post specifications and spacing can be flexibly adjusted in accordance with protection grade requirements of different road sections to achieve precise protection.

Boasting excellent structural performance, wide adaptability to protection grades and stable engineering performance, the H Post+H Spacer+W Beam system possesses strong global market adaptability. It has been extensively applied in highway construction projects across Southeast Asia, Central Asia, West Asia, Africa and many other overseas regions. It is applicable to conventional subgrade protection of national and provincial trunk highways as well as urban and rural roads in these regions, and can also meet enhanced protection requirements for high-risk sections including mountainous roads, cliffside roads and high-fill road sections. Meanwhile, it adapts to diverse engineering scenarios such as new highway construction and retrofitting of existing road safety facilities, as well as various climatic conditions, topographical and geological environments and highway operation conditions overseas.

In summary, the H Post+H Spacer+W Beam combined system integrates flexible energy absorption and rigid support, featuring rational structure, stable performance and efficient construction, and can adapt to road safety protection demands in various countries and regions. For export trade, product design and quality control in accordance with mandatory certification standards of target markets are crucial to guarantee the smooth entry of guardrail systems into the international market and their proper safety performance.
